Pouring Tank

Product features：Vacuum pouring tank, referred to as pouring tank

Online consulting

Telephone

18553885916

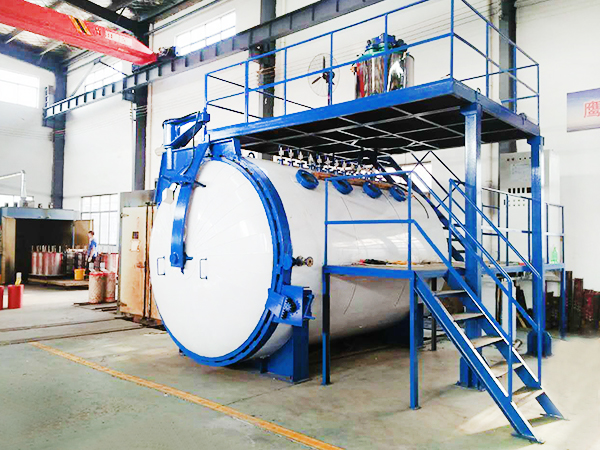

Vacuum pouring tank, referred to as pouring tank, realizes the casting of epoxy resin from atmospheric pressure molding to vacuum heating and pressure curing molding, and significantly improves the internal and external quality of the pressure vessel. The strength electromechanical pouring tank adopts intelligent control system and integrated process, and maintains high vacuum technology from material pretreatment, piping system to mixing pouring system. Complex molding and other characteristics.

Application field:
Vacuum pouring tank is suitable for vacuum degassing, combination and casting production of bisphenola epoxy resin, purple ring family outdoor epoxy resin, polyurethane and other polymer materials, and is widely used in dry-type transformers, dry-type current mutual inductorsepoxy resin casting and manufacturing of transformers, dry-type voltage transformers, dry-type bushings, high-voltage switch insulators, arc suppression coils and other electrical products.

Technical parameter:

Vacuum tank size(㎜)	Ultimate Vacuum(Pa)	Leak rate(Pa.L/S)	Working Temp.（℃）	Control Precision	control method
Φ2400×3000	≤50	≤100	115±5	±5	PLC automatic control
Φ2400×3500	≤50	≤100	115±5	±5	PLC automatic control
Φ2600×3000	≤50	≤100	115±5	±5	PLC automatic control
Φ2600×3500	≤50	≤100	115±5	±5	PLC automatic control
Φ2800×3000	≤50	≤100	115±5	±5	PLC automatic control
Φ2800×3500	≤50	≤100	115±5	±5	PLC automatic control
Φ3000×3000	≤50	≤100	115±5	±5	PLC automatic control
Φ3000×4000	≤50	≤100	115±5	±5	PLC automatic control
Φ3200×3500	≤50	≤100	115±5	±5	PLC automatic control
Φ3200×4000	≤50	≤100	115±5	±5	PLC automatic control
Other parameters can be customized
